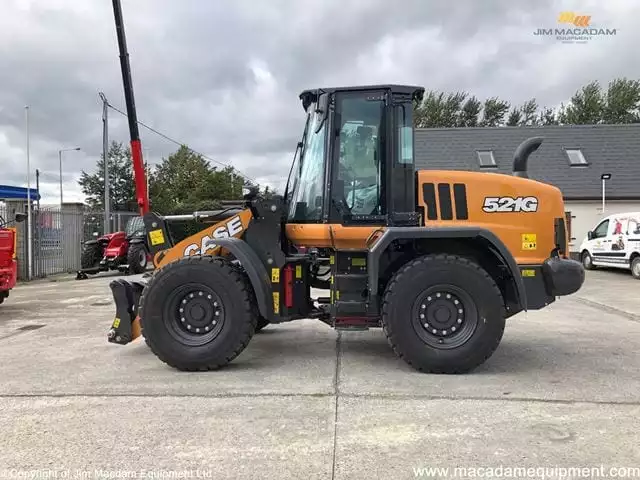

The New Case 521G Loading Shovel

Sep 14, 2020

The New Case 521G has now arrived in stock at Macadam Equipment

With no EGR or particulate filter.The engine was developed and manufactured by Cases’ award winning sister company FPT Industrial, which
produces over 500,000 engines per year and powers world record winners.
The in-house design leverages advanced technologies developed for commercial vehicles and agriculture, and
introduces specific tailored solutions for off-road applications.
The NEF N67, with 6 in-line cylinders and a 6.7 litre displacement, is designed to offer both fuel efficiency and
reliability with plenty of power available.
• The air intake flow is increased by a turbocharger
with air-to-air cooling.
• The multiple injection delivers best-in-class high
torque performance at low rpm.
• No EGR valve is used: 100% fresh air is taken for combustion
without DPF and no extra cooling system is needed.

Without particulate filter
With HI-eSCR after-treatment, FPT technology meets Stage IV (Tier 4 final) emissions standards
With this system, fewer components are involved, engine oil quality is not compromised
and there is no need for a particulate filter (DPF).

Intelligent clutch cut off with power inch
With Power Inch, positioning the loader is as smooth as with a hydrostatic transmission,
with the added advantage of massive pushing power delivered by the torque converter.
This also prevents rolling back on slopes.
The automatic start of the transmission in second gear reduces operator fatigue, fuel usage
and stress on the torque converter. With the further enhancement of a torque-based 2- to-1
downshift, the transmission will downshift automatically based on machine load or manually
with the kick-down button located on the joystick.

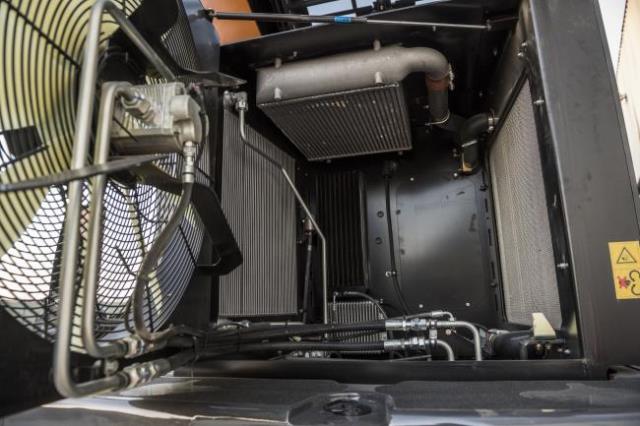

Case cooling cube
The unique design of the CASE cooling cube, with five radiators mounted to form a cube instead of overlapping,
ensures a constant flow of fresh and clean air from the sides and from the top, to maintain constant fluid temperatures.
The cube structure provides easy access to radiators for a more effective cleaning and serviceability: additional
cleaning can also be easily done manually, with separate access to each radiator.
Designed for dusty environment
The cooling system is mounted behind the cab, far from the rear bumper of the machine and from the ground: away
from the dust.

Cooling Cube

Front visibility
The one-piece design windshield provides an unobstructed panoramic view.
Rear Visibility
Multiple rear view convex mirrors, a rear view display, the slim engine hood and
rear grid defroster ensure optimum rear visibility.

Noise and vibration
The new active suspension premium seat features Combined with the suspended cab mount and the positioning of the engine at the rear, this reduces the noise
and vibrations the operator is subjected to.
• Noise in the cab is not only low (68-69 dB): it also sounds great
Cab air
• Primary and re circulation filtration efficiency now reaches 99% of particles with improved dust
capacity and longer replacement intervals. When working in particularly tough conditions, additional HEPA and Active Carbon filters can be fitted
Cab access
• Access is easier and safer thanks to the optimised handrails and the pull-type handle


Seat and controls
The seat mounted armrest gives more accurate control and comfort.
It features proportional control integrated in the joystick.
The suspended seat includes seat heaters which warm it up in the cold winter mornings.
User interface
The premium control interface with 8’’ color display offers intuitive navigation through the machine’s
information and settings.
The hands free calling kit features an integrated microphone connected to the radio via bluetooth.
Life on board
The CASE electrically powered cool box keeps your lunch fresh all day long.
Multiple storage areas enable you to store documents, beverages and personal objects conveniently

Ground level serviceability
The positioning of the engine at the rear and the easy-to-open electric hood provide fast access to the
service points. Jumper cables are available as standard for jump starting the engine if the battery is low.
Grouped service points
Don’t be surprised if you don’t see any safety handrails around the hood or steps behind the rear wheels, all service
points are easily accessible at ground level. You can do a fast visual check of the hydraulic and transmission
oil levels. The three drains are grouped together on the left side, so that fluids are easy and quick to replace.
Greater safety
All the main service points are easily accessible from the ground, so you can carry out your daily maintenance safely and efficiently

Case Official Dealer
Jim Macadam Equipment are the Official Dealer for Ireland for Case Construction Machinery and have been providing award winning parts, sales and service facilities for Case’s renowned full line construction machinery offering which includes Tracked Excavators, Mini Excavators, Backhoe Loaders, Skid Steer Loaders, Dozers, Graders and Loading Shovels for over 27 years now.

Pinnacle Dealer Standards
Macadam Equipment have been Certified Case Pinnacle status main dealer for many years, however for the past three years running we have achieved the highly coveted Advanced Case Pinnacle Status, which is held by only a handfull of dealers around Europe and the World and is based on a high level of auditing from Case which ensures our customers the highest level of operation from all our spare parts, sales and service departments.

Servicing and repairing your Case machinery
Our service and repair engineers are highly trained and equipped with state of the art diagnostic equipment to ensure your Case mini digger, excavator, loader or backhoe it is kept up to date and in top condition.

Case spare parts
Our spare parts department not only have a market leading first time pick rate and all the oils and filters you need for your Case machinery, they are also long serving industry professionals who will be able to identify your spare parts and speedily help fulfill your requirements.

Our sales representatives are well known and knowledgeable industry professionals and are very responsive to your enquiries. You will find they have a vast knowledge in the heavy plant machinery we are dealing in and are available for any help you need to plan the right machine for your next job site.

The New Case 521G has arrived in stock so for more information:

Office: 01 4601530 Mobile: 087 8176282
